SIMPER TOUCH Controller with SiMS Smart Assistant Application

Based on a comprehensive analysis of user needs, a device has been designed that allows for the operation and monitoring of selected vehicle system parameters.

Now, you can manage multiple functions using just one device A convenient touch panel is used to operate individual functions. The application allows for the control and monitoring of lighting, heating, batteries, clean/gray water level and turning the water pump on/off.

• Power supply: 9-36 V DC
• Power consumption: <6 W
• Resolution: 800×480
• Brightness: 500cd/m2
• Matrix size: 5”
• Interfaces: wi-fi; 1xUSB 2.0; 2xIN, 2xIO
• Weight: 0,4 kg
• Type: touch, capacitive

Application functions

• Monitoring devices, transmitting key notifications, and managing alerts
• Lighting control: adjustment in terms of light intensity

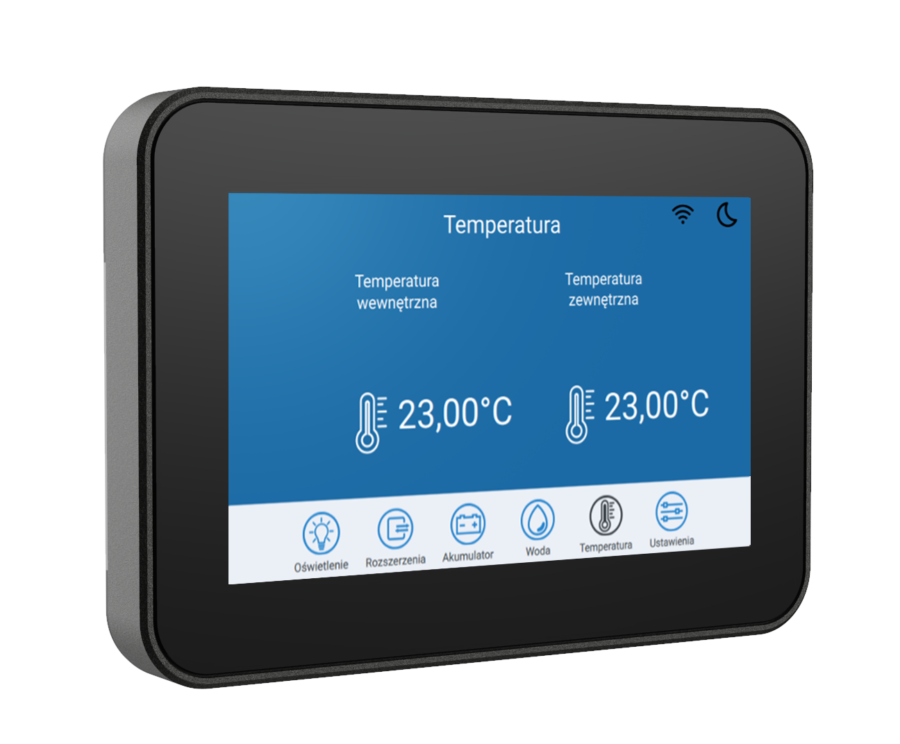

• Monitoring indoor and outdoor vehicle temperatures
• Control of heating and air conditioning systems

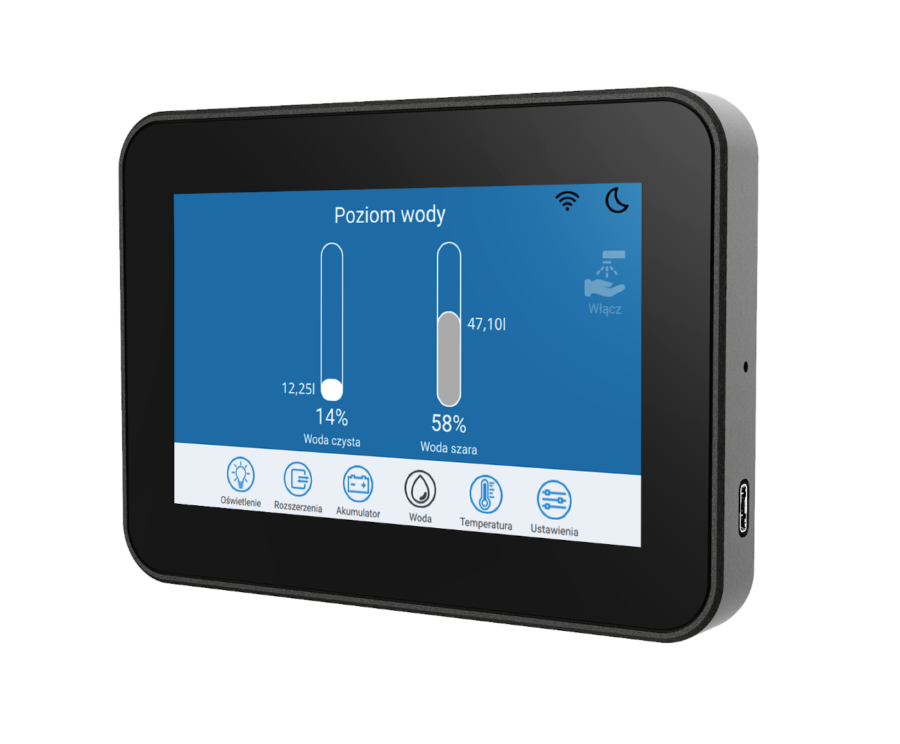

• Real-time reading of sensor status (e.g.: clean/gray water level)

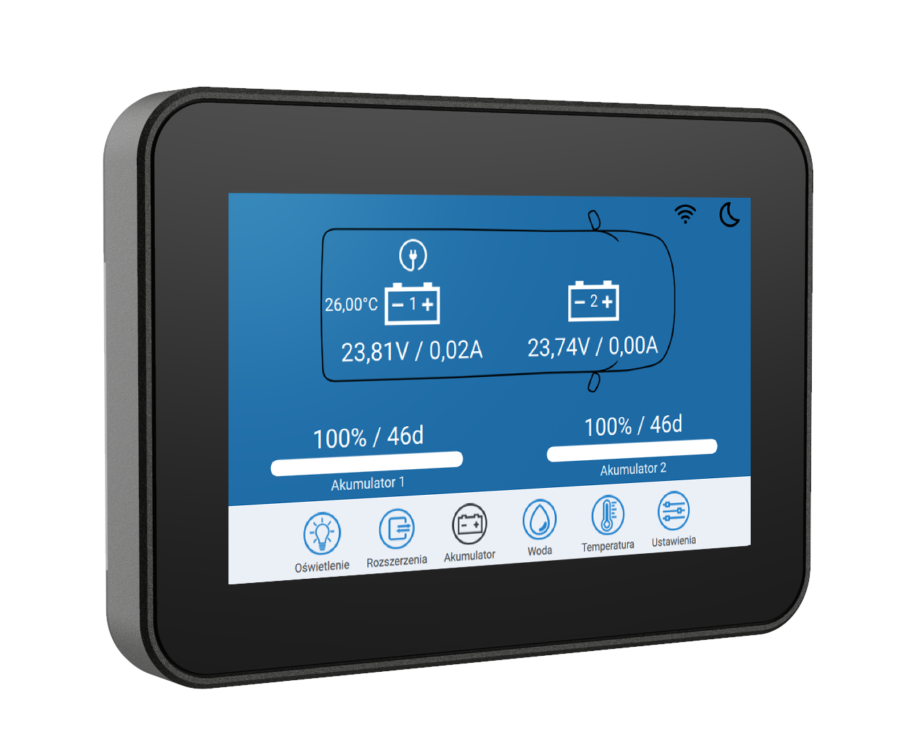

• Monitoring the battery charge status
• Extensive possibilities for system expansion, such as: indoor and outdoor vehicle monitoring, GPS location, telemetry
• Data exchange with the cloud

• Central control and monitoring of devices installed in the vehicle
• 5-inch touch panel with a high resolution of 800×480
• A functional and clear interface ensuring comfort and convenience
• A fully scalable and universal system allowing for extensions and adaptation to project needs
• The intelligent solution offered by SiMS is a way to enhance travel safety

Available interfaces

• 1 x CAN 2.0A/B
• Wi-fi
• 2 x IN
• 2 x IO
• 1 x RS232

Implemented functions

• Digital output control
• Power supply voltage monitoring
• Digital input monitoring
• Reading temperature from sensors on the ONE WIRE bus.
